High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector

  • 1
  • 2
  • 3

Model Number : 7420B

Place of Origin : Guangdong, China

Brand Name : Chuanglixun

MOQ : 1

Price : $750-800

Light source wavelength : MM:850nm/1300nm SM:1310/1550/650,850 1310/1490/1550

Storage temperature : -5~+60℃

Access port : RS232/GPB(Optional)

Resolution : ±0.3dB

Photo detector : InGaAs

Power supply : 110VAC/220VAC 50HZ

Measurement range : +3 ~ -75dBm

Dimension : 265x260x120(mm)

Weight : 3kg

Return Loss range : 14.8 ~ 75dB

Output stability : 0.05dB(1 hour@25°C)

Measurement accuracy : 0.25dB

Wavelength range : 800~1700nm

Operation temperature : -5℃~+55℃

Communication port : USB

Contact Now

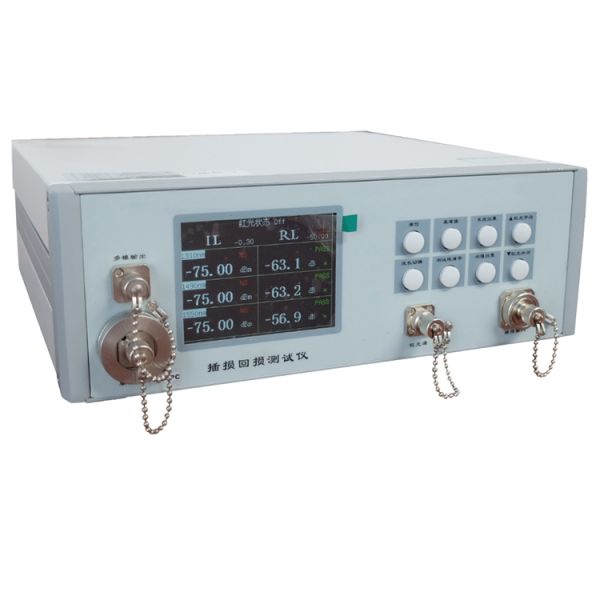

IL/RL Tester Patch Cord Fiber Optics Connector Test Station
Professional benchtop insertion loss and return loss test station for fiber optic cables and connectors.
High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector
Key Features
  • High measurement accuracy for precise testing
  • Synchronously auto-setting wavelength
  • Multiple working modes for versatile applications
  • Easy operation with intuitive interface
  • Human engineering design for user comfort
  • Universal optical connector with easy cleaning
  • USB port for data transfer and connectivity
High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector
Applications
  • Testing pigtails and patch cords

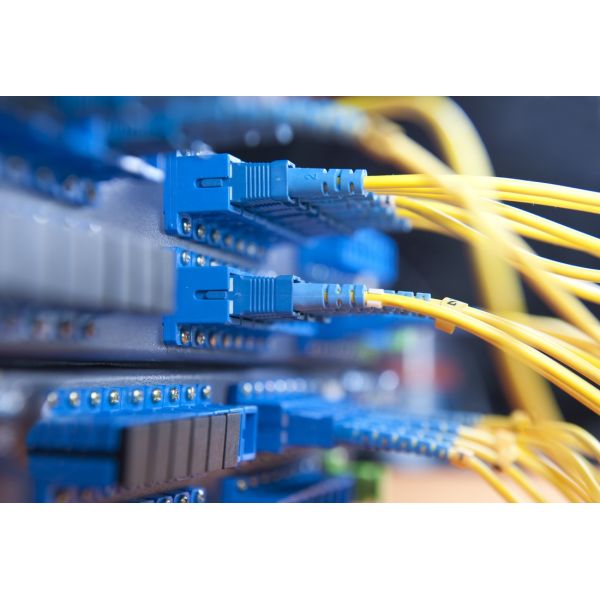

  • Optical connections in communication equipment rooms
  • Optical distribution frames testing
  • Optical apparatus and equipment connections
Technical Specifications
Product Name Insertion and Return Loss Test Station
Origin China
Optical Return Loss Test Wavelength: 1310/1550nm
Optic Connector FC/APC
Return Loss Measurement Range 14.8 ~ 75dB
Output Stability 0.05dB (1 hour @25°C)
Measurement Accuracy 0.25dB
Resolution ±0.3dB
Optical Power & Insertion Loss Test Wavelength Range: 800~1700nm
Calibrated Wavelength 850/1300/1310/1550nm (others optional)
Optic Connector (Power Meter) Interchangeable FC/SC/ST/2.5mm Universal /1.25mm adaptors
Photo Detector InGaAs
Display Modes dBm/dB/xW
Measurement Range +3 ~ -75dBm
Resolution Non-linear: 0.001dB; Linear: 0.001nw/µW/mW
Measurement Accuracy ±5%
Communication Port USB
Power Supply AC 90-260V, 50~60Hz
Operation Temperature -5℃ ~ +55℃
Storage Temperature -25℃ ~ +70℃
Dimensions 360×240×130mm
Weight 2.8kg
High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector High Measurement Accuracy IL/RL Tester with Multiple Working Modes and Universal Optical Connector
Shipping Information
We utilize major international carriers including DHL, FEDEX, UPS, EMS, TNT, or Sea freight. You may provide your courier account, and we will select the most cost-effective shipping method based on quantity and destination.
Frequently Asked Questions
  • Who are we?
    Based in Guangdong, China since 2010, serving Southeast Asia (38%), North America (38%), and Northern Europe (2%) with 11-50 dedicated professionals.
  • How do we guarantee quality?
    Pre-production samples before mass production and final inspection before shipment ensure consistent quality standards.
  • What can you buy from us?
    Optical fiber connector manufacturing equipment, fiber jumpers, manufacturing tools and supplies, fiber optic connector adapters, and technical services.
  • Why choose us over other suppliers?
    Eleven years of R&D, design experience, and technical expertise. We provide excellent products, comprehensive after-sales service, and free technical support including documentation and videos.
  • What services do we provide?
    Accepted delivery terms: FOB, EXW, FAS
    Accepted payment: USD, CAD via T/T, MoneyGram, Western Union
    Languages: English, Chinese
